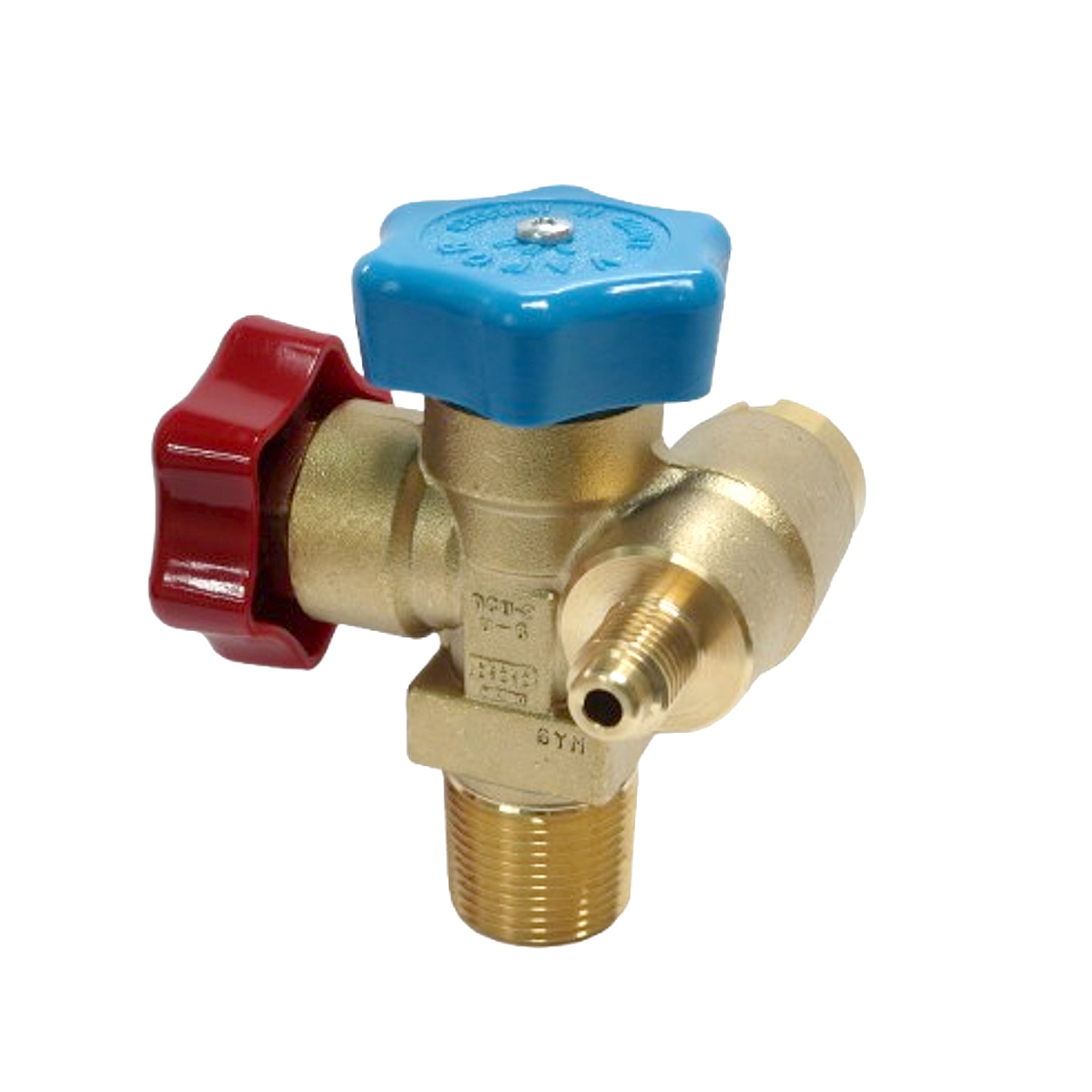

DCU-2

The DCU-2 type valves, with integrated the U-6 check valve is for Vapor/Liquid refrigerant applications.

Key Features

  • Tamper Proof: The unique check valve design prevents tampering such as using the cylinder for recovery.
  • Pressure retaining function: Maintains the integrity of the refrigerant gas in the cylinder and prevents gas contamination.
  • Backflow prevention: Keeps the inside of the cylinder clean and extends the life of the cylinder. Plus, prevents oil-containing contaminated gases from entering the cylinder.
SPECIFICATION
Maximum service pressure 2.75MPa(400psi) TPED 30Bar
Seat orifice size 5mm
Body material Brass
Seat disc Nylon66
Safety device Spring type
Certificate TPED,TPER

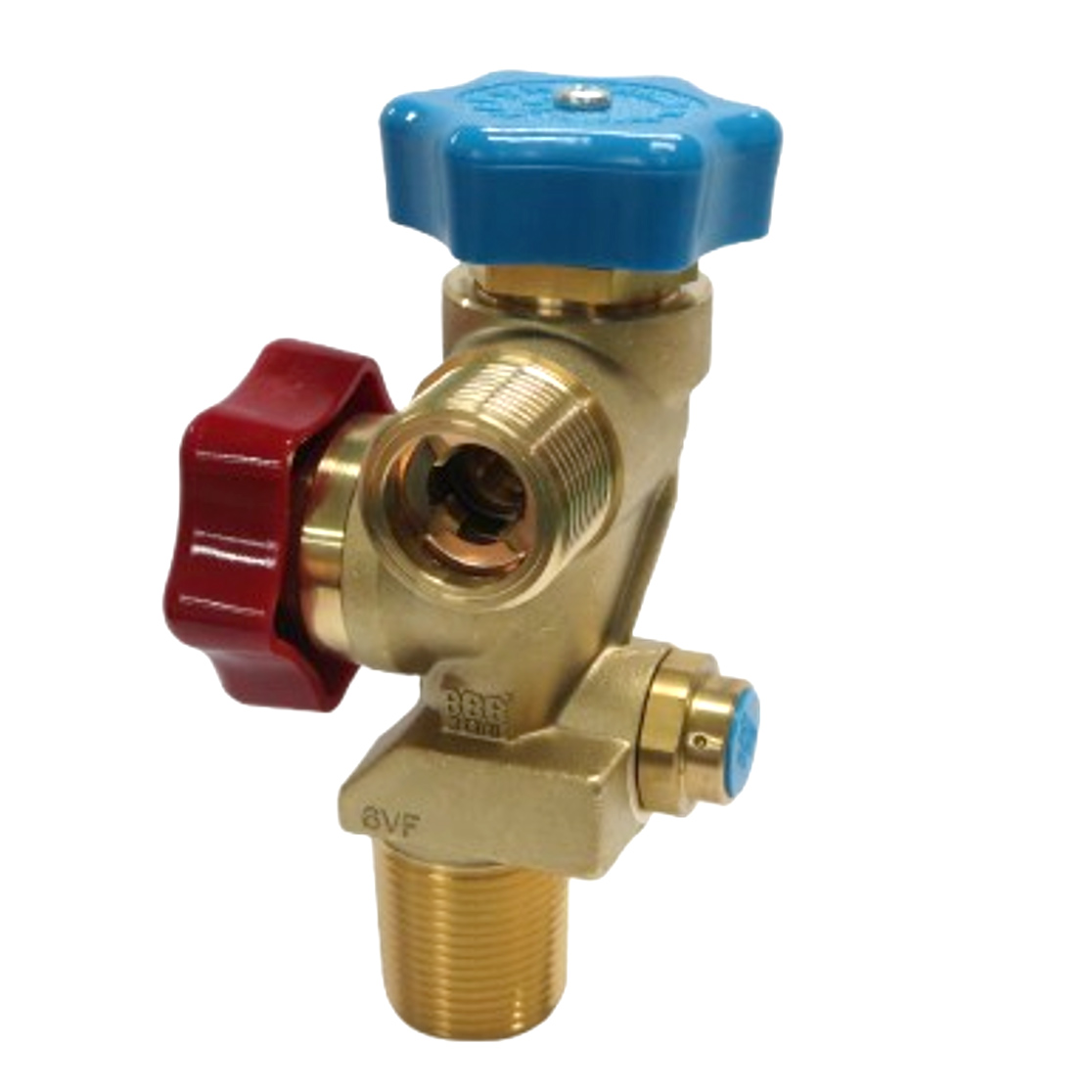

D-7CU L/V

The D-7CU Liquid/Vapor diaphragm type valve suitable for middle size refrigerant gas cylinders.

Key Features

  • Tamper Proof: The design of the check valve (RPD) cassette ensures that evidence will be left behind if someone attempts to remove the cassette.
  • Pressure retaining function: Maintains the integrity of the refrigerant gas in the cylinder and prevents gas contamination.
  • Backflow prevention: Keeps the inside of the cylinder clean and extends the life of the cylinder. Plus, prevents oil-containing contaminated gases from entering the cylinder.
SPECIFICATION
Maximum service pressure 2.75MPa(400psi) TPED 30Bar
Seat orifice size 8mm
Body material Brass
Seat disc Nylon66
Safety device Spring type
Certificate TPED

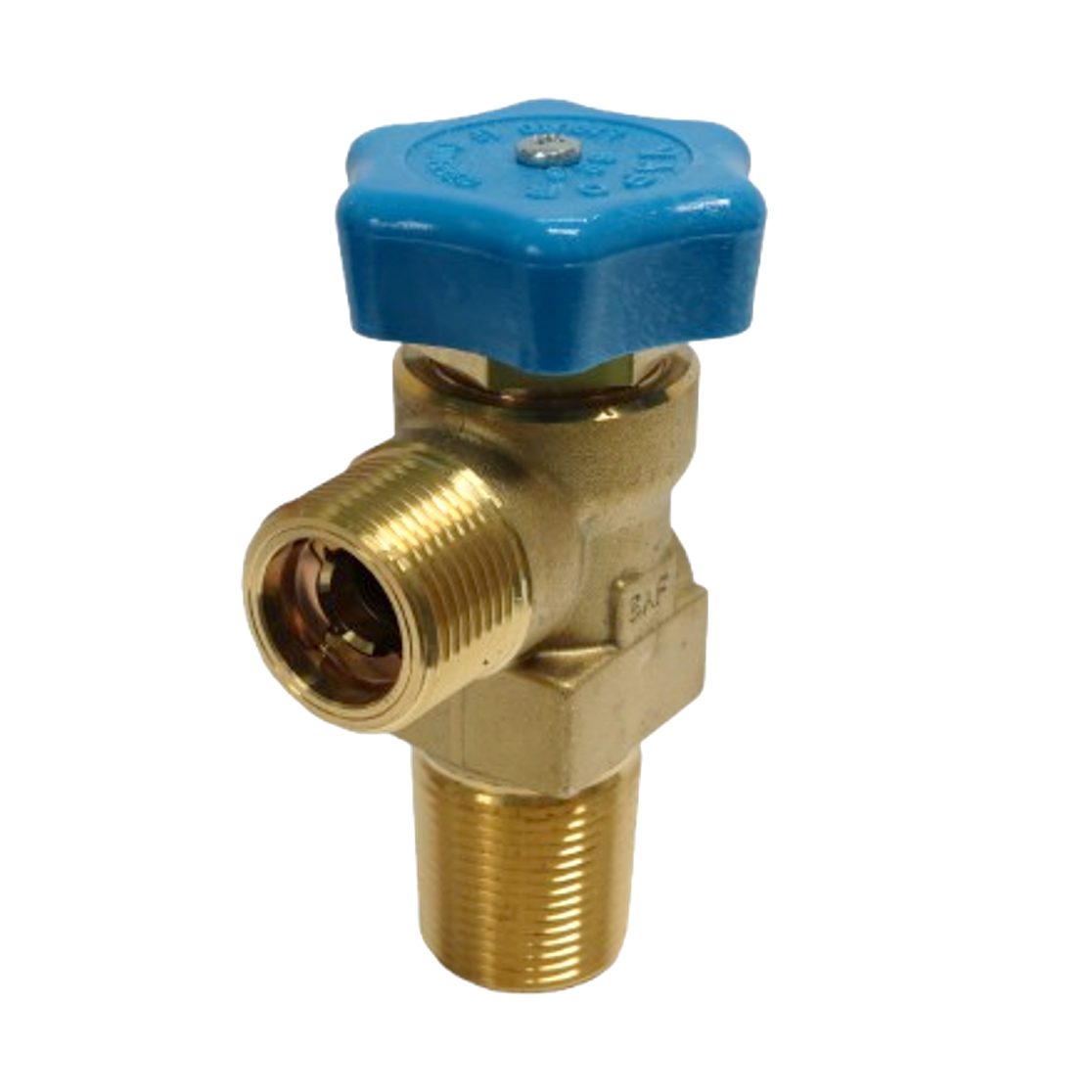

D-7CU

The D-7CU single handle diaphragm type valve suitable for large size refrigerant gas cylinders.

Key Features

  • Tamper Proof: The design of the check valve (RPD) cassette ensures that evidence will be left behind if someone attempts to remove the cassette.
  • Pressure retaining function: Maintains the integrity of the refrigerant gas in the cylinder and prevents gas contamination.
  • Backflow prevention: Keeps the inside of the cylinder clean and extends the life of the cylinder. Plus, prevents oil-containing contaminated gases from entering the cylinder.
SPECIFICATION
Maximum service pressure 2.75MPa(400psi) TPED 30Bar
Seat orifice size 8mm
Body material Brass
Seat disc Nylon66
Safety device None
Certificate TPED

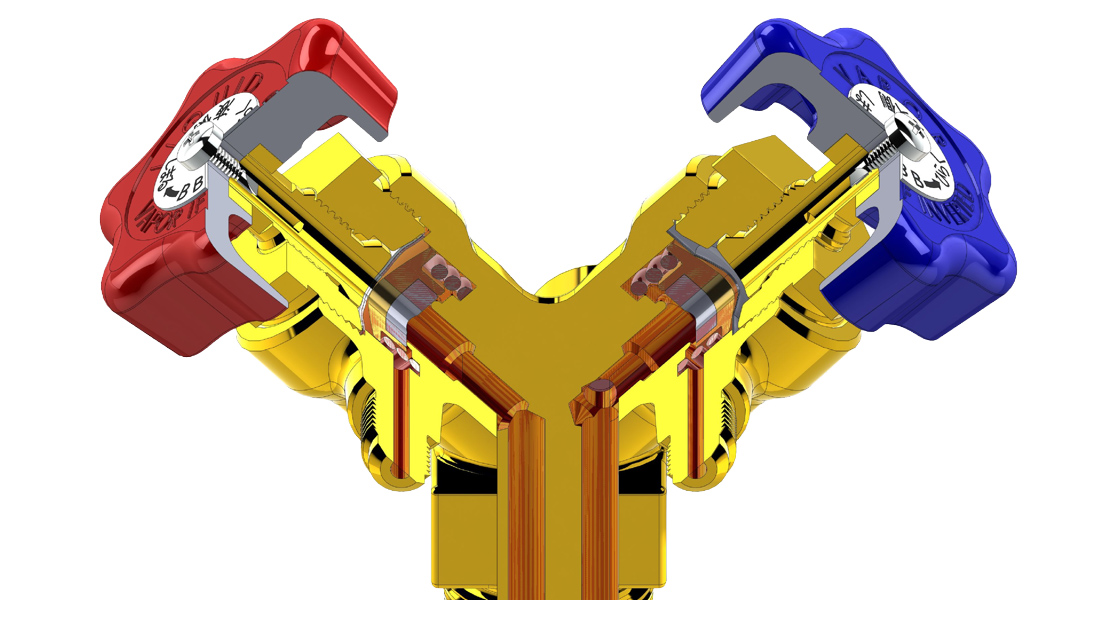

DFV

DFV Y shaped valve with diaphragm seal dual port with pressurization capability for refrigerant applications.

Key Features

  • Ease of use: The shut-off is fully open/close with one and a half handle turn.
  • Diaphragm seal: By changing the conventional gland sealing method to a diaphragm type, reliability against gland leakage and durability have been improved.
SPECIFICATION
Maximum service pressure 2.75MPa(400psi)
Seat orifice size 5mm
Body material Brass
Seat disc Nylon66
Safety device Spring type

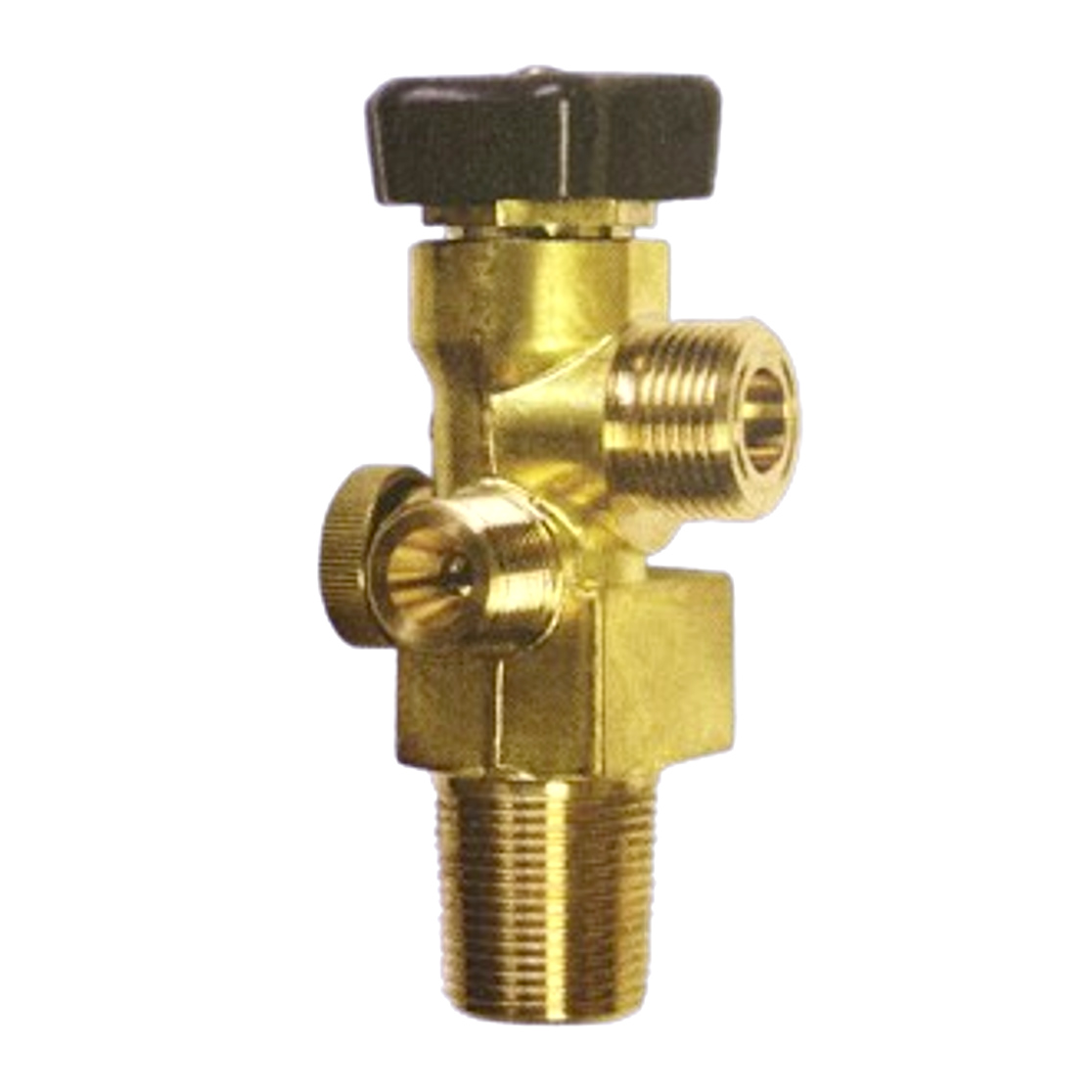

DE-1

The DE-1 dual port dual handle valve with pressurization capability for refrigerant applications.

Key Features

  • Dual port Dual handle: A separate liquid/vapor port that allows for the application of auxiliary pressure if the gas vapor pressure is too low.
  • Compact design: Small compact design fits all standard valve protection guards.
SPECIFICATION
Maximum service pressure 2.75MPa(400psi)
Seat orifice size 8mm
Body material Brass
Seat disc Nylon66
Safety device Spring type

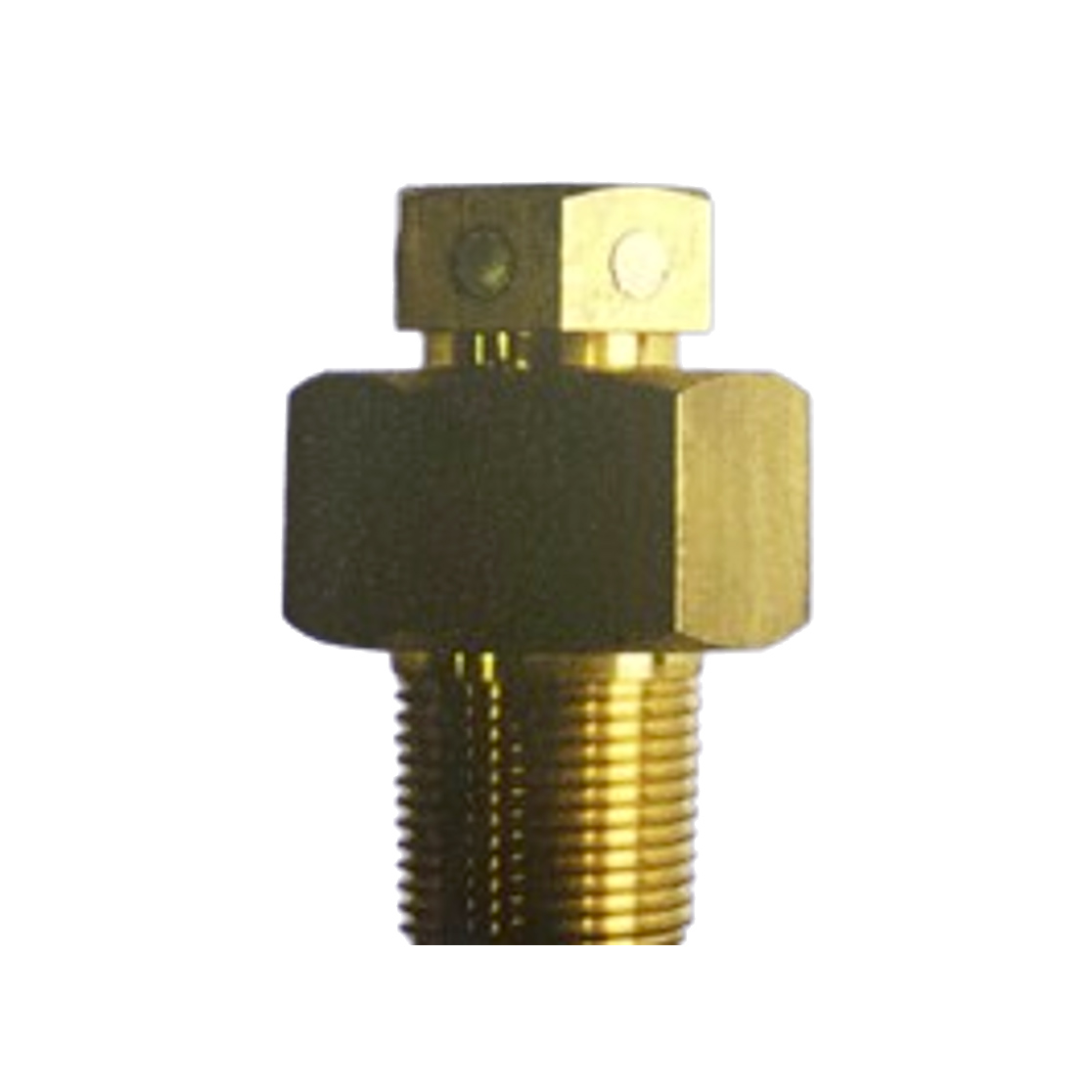

SP-11

SP-11 safety valve is a combination of rupture disk and fusible plug valve using a fusible alloy.

SPECIFICATION
Hydrostatic test pressure 10.4MPa(1500psi)
Yield temperature 69.5-73℃(157-164℉)
Body material Brass
Rapture disc Copper width Ni Plating
Connection CGA3.4-14NGT

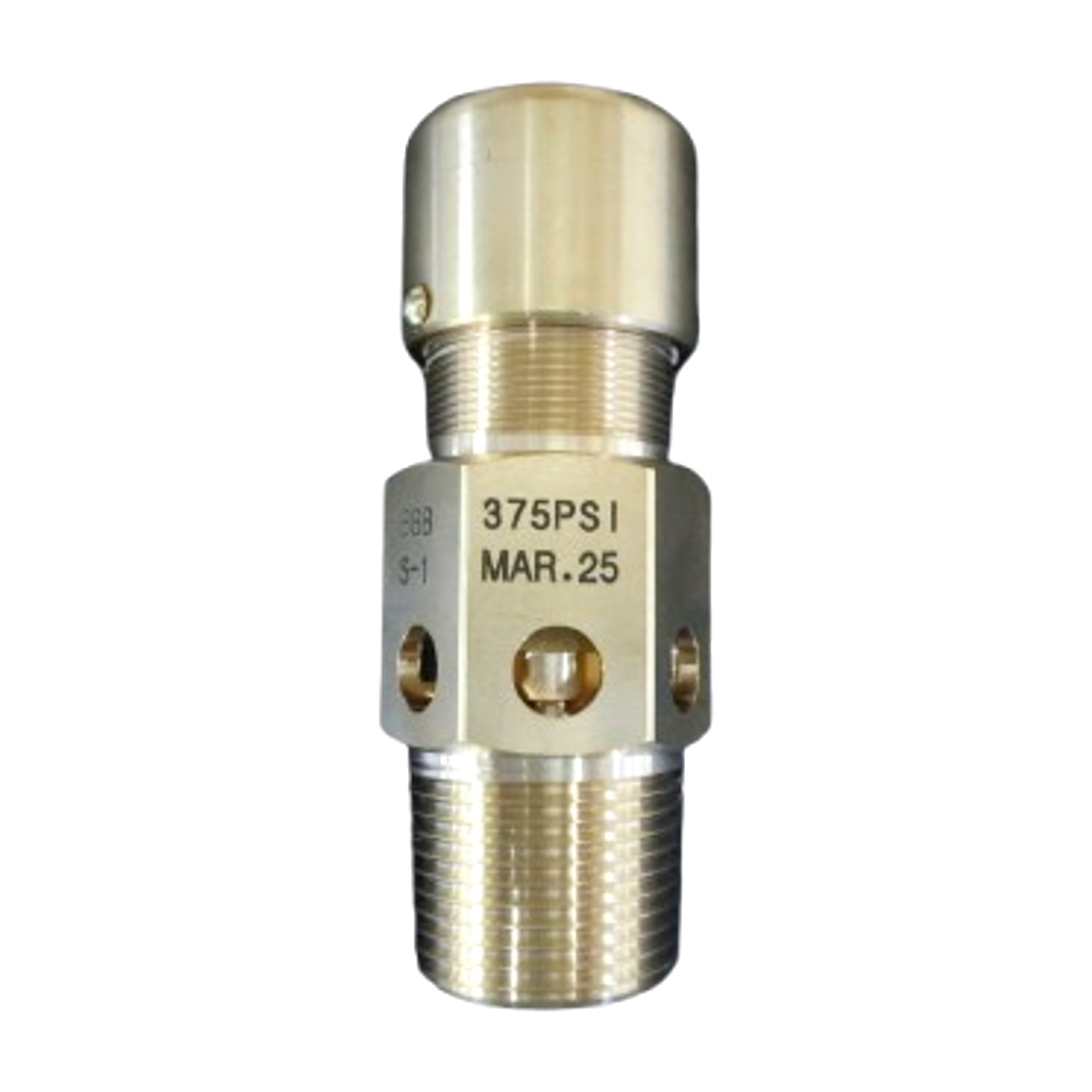

S-1

S-1 safety a spring-loaded pressure relief device for refrigerant applications.

SPECIFICATION
Pressure range Up to 4.14MPa(600psi)
Body material Brass
Seat material PTFE
Connection 3/4-14NPT
Comply 49 CFR 179.301
Individual specitication requirements for multi-unit tank car tanks.

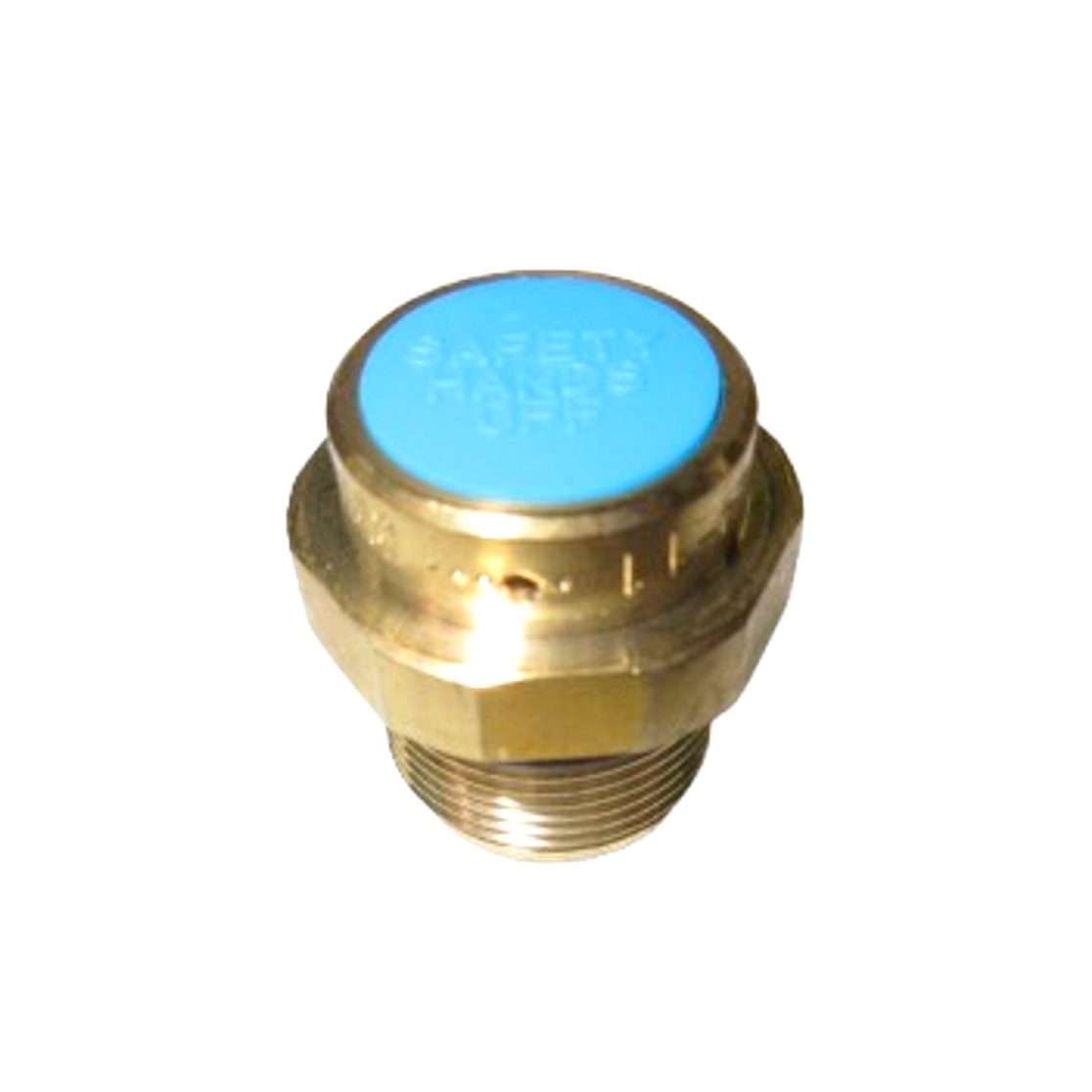

3EA

3EA spring-loaded relief device is built in all refrigerant valves for small and middle size cylinders.

SPECIFICATION
Pressure range 375psi/600psi
Body material Brass
Seat material Chloroprene rubber
Connection 3/4-14NPT

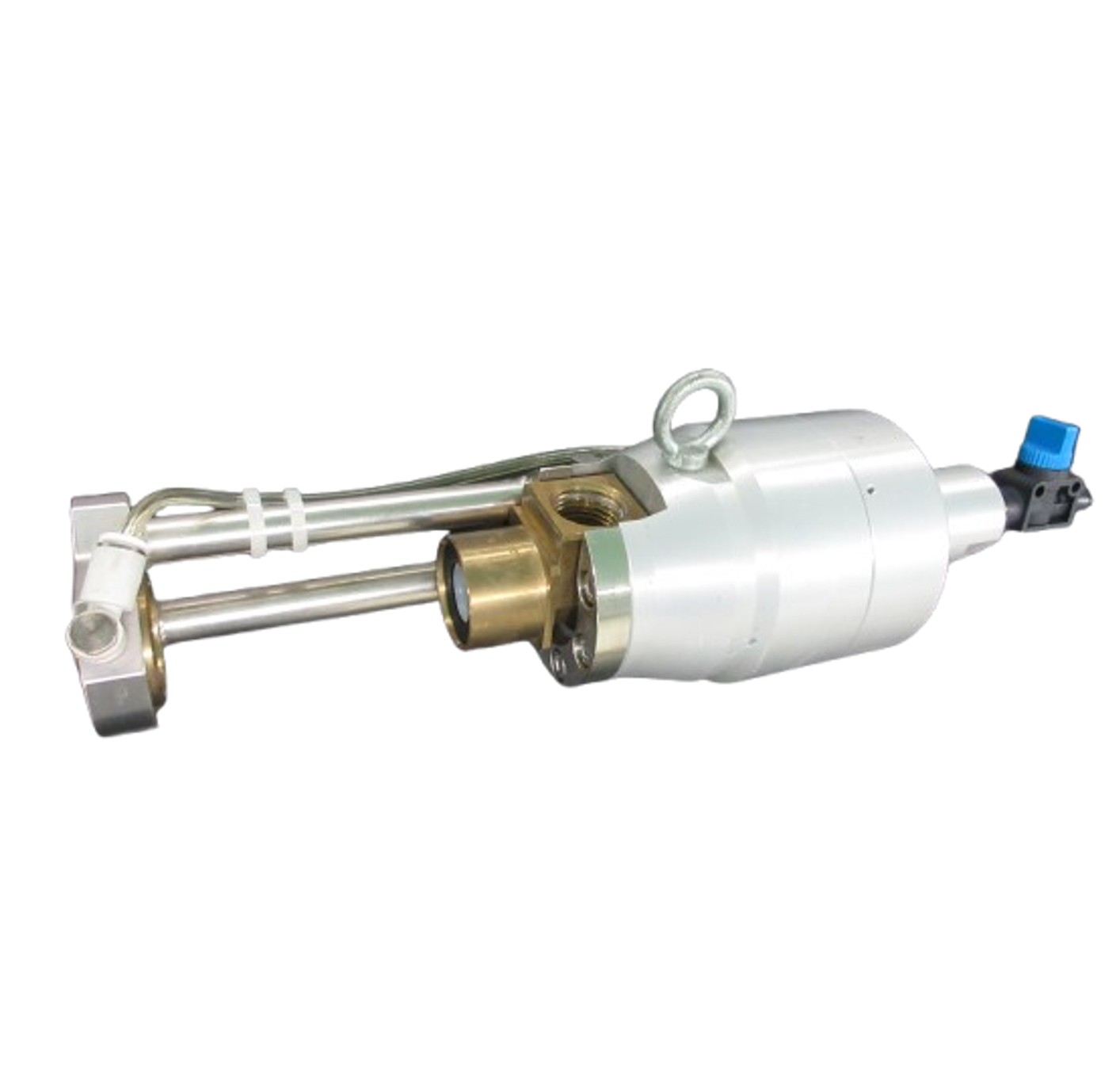

UT6 Filling Tool

UT6 Filling Tool is specially designed for DCU-2 valve which has a built in U-6 check valve. This filling tool clamps DCU-2 valve and releases the check valve in one action.

SPECIFICATION
Applicable connections CGA164,165,166,167
Gas application Refrigerant gases
Body material Brass,Stainless steel,Aluminium
Design pressure 435psi
Air actuated operation pressure 87psi
